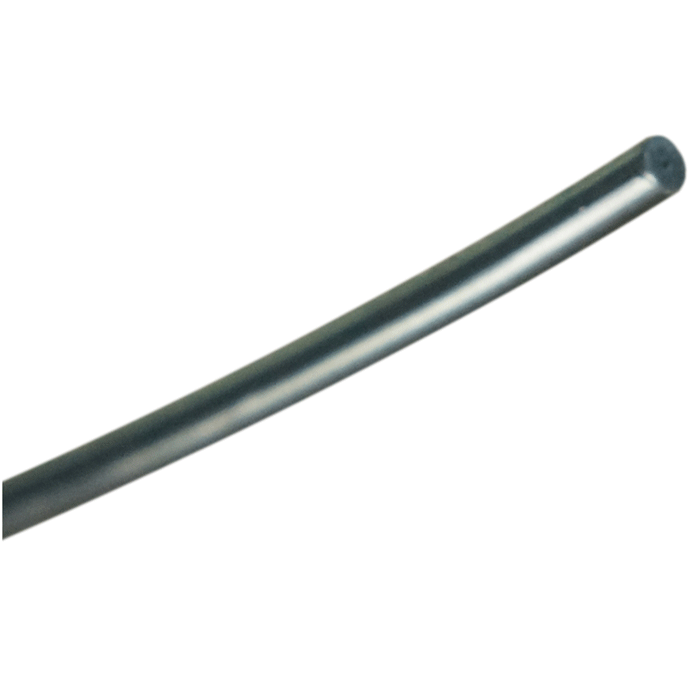

Tubing, PTFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, black, 5 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
47240-40 ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing increased flow capacity and visual differentiation for organized fluid routing.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment used for visual identification, ensuring minimal contamination risk and compatibility with sensitive analytical workflows.
Precision Dimensions – Increased Flow Capacity
Inner Diameter (ID): 0.010" (0.25 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID allows higher flow rates and reduced restriction compared to smaller ID tubing
Black Pigmentation – Visual Line Identification
Black‑pigmented PTFE tubing
Enables:
Clear visual differentiation of fluid lines
Organization of multi‑line systems
Faster troubleshooting and maintenance
✅ Used for visual identification only (no functional or standardized color coding implied)
Low‑Pressure Chromatography Performance
Designed for low‑pressure applications, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 800 psi (55.2 bar)
✅ Provides stable and reliable solvent handling
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace pigment)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and trace‑level analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding analytical environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative materials where gas impermeability is required
Flexible & Durable Design
Flexible for easy routing and installation
Durable for repeated lab use
Maintains clear visual distinction in multi‑line systems
✅ Supports efficient system setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets environmental and safety standards
Available Length Options
✅ Select the appropriate length for your application:
5 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Solvent waste systems
Multi‑line fluid routing with visual differentiation
Low‑pressure fluid transfer systems
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Black pigmentation is for visual identification only
Consider permeability when using degassed or oxygen‑sensitive solvents
Use proper fittings for secure, leak‑free connections
